Why Choose Robotic Site Layout?

Proport Design is the first in Alberta, and among fewer than five in Canada, to adopt this revolutionary layout technology for commercial construction layout. Leveraging state-of-the-art layout systems, our methods simplify complex layouts, reduce errors, and accelerate project timelines.

Faster Layout Turnaround

Layout plans up to 10x faster than traditional chalk lines and tape measures.

Pinpoint Accuracy

HP SitePrint delivers millimeter-level precision, minimizing rework.

Streamlined Project Flow

Aligns perfectly with your BIM or CAD models to keep trades on track.

Robotic Site Layout Services

Proport Design provides full-service robotic site layout for commercial, industrial, and oil & gas projects across Alberta. Whether it's a new build or a retrofit, our team works with your design files to print accurate layout lines directly on-site using HP SitePrint.

Included Services:

On-site setup and calibration
DWG/DXF file preparation
Layout line printing for walls, doors, electrical, plumbing, HVAC, and more
Coordination with GC and trades
Layout verification and reporting

How Does It Work?

HP SitePrint In Action

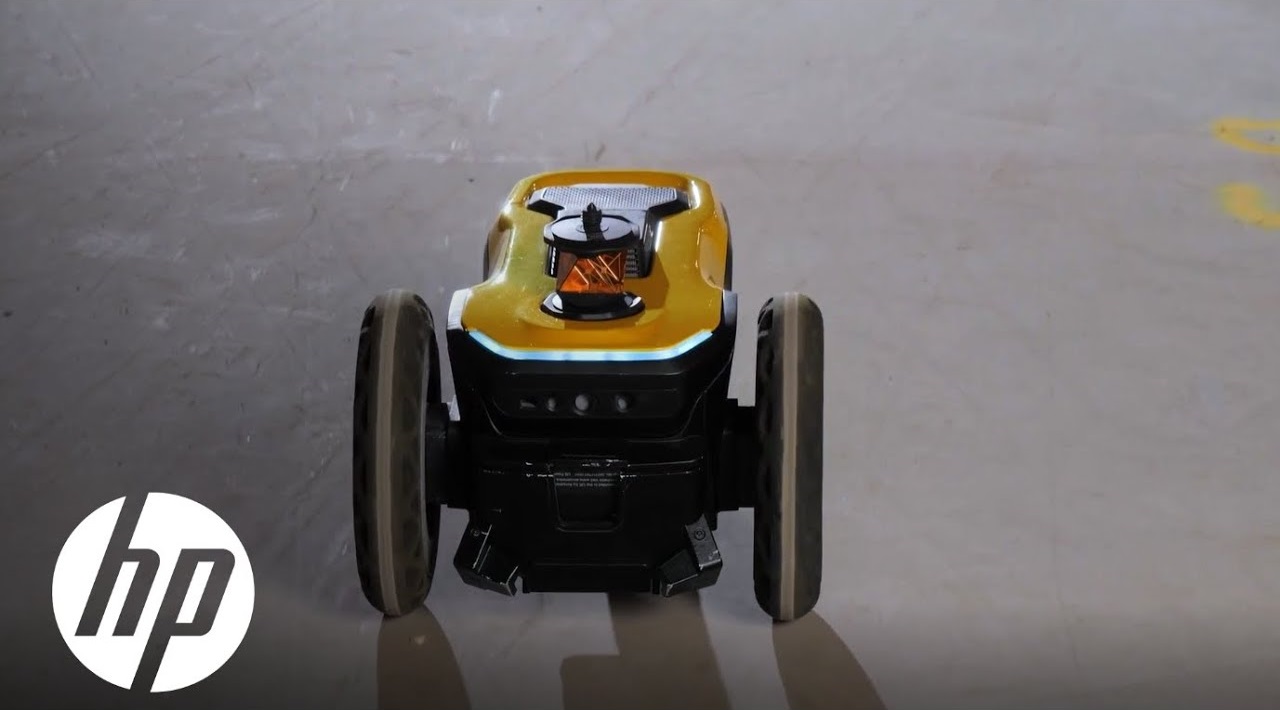

Thumbnail for HP SitePrint with HOAR Construction

Industries Served

At Proport Design, we deliver robotic site layout services across a wide range of industries. From commercial construction to oil and gas projects, our HP SitePrint technology ensures fast, accurate, and efficient layout printing to keep your projects on time and on budget.

Commercial Construction

Office towers, retail, mixed-use developments.

Oil & Gas Sites

Layouts for upstream and midstream facilities.

Industrial Facilities

Factories, plants, and warehouses.

Mills

Pulp, lumber, and processing mills.

Frequently Asked Questions About Robotic Site Layout

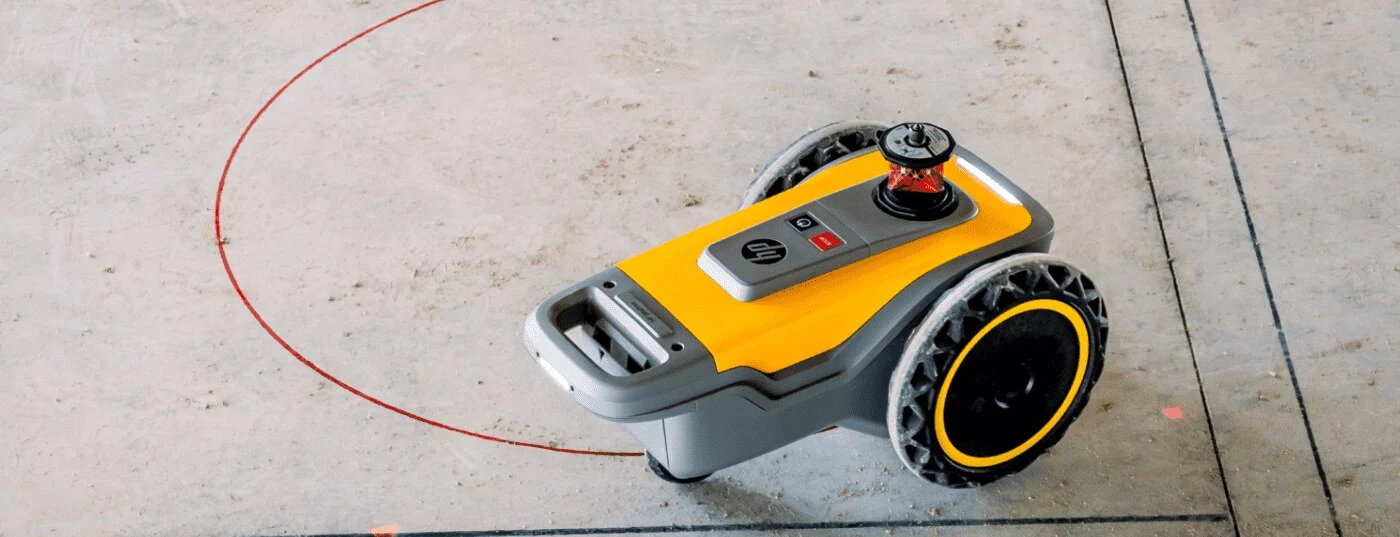

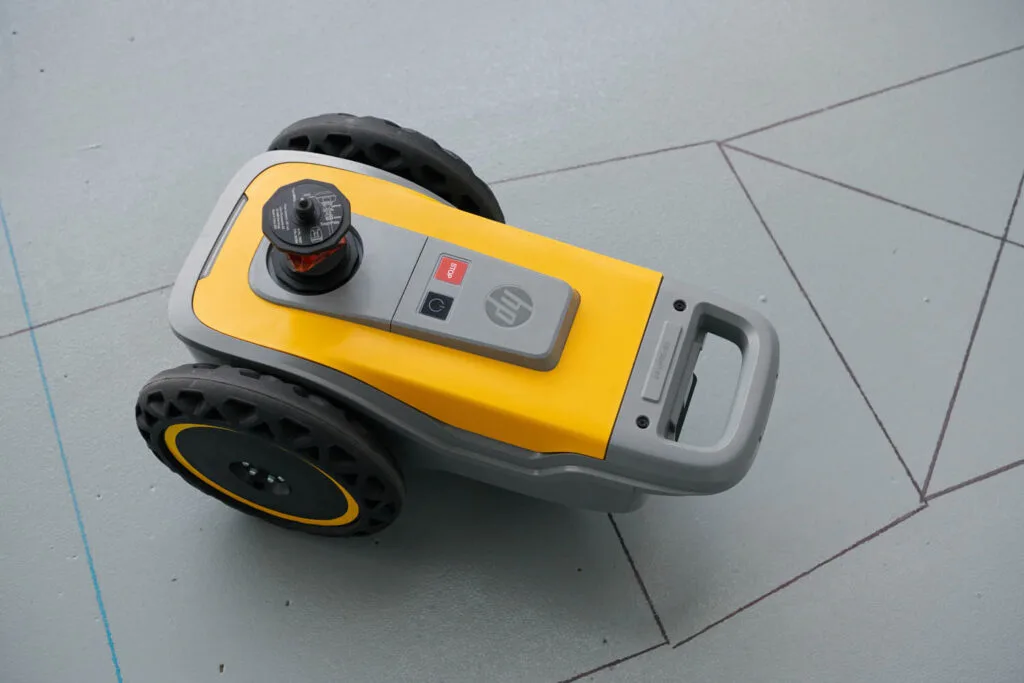

HP SitePrint is a revolutionary autonomous robotic layout system that prints construction layout lines directly onto concrete floors. It uses your CAD/BIM files to achieve millimeter-level accuracy, completing layouts up to 10x faster than traditional chalk line methods. Proport Design is the first company in Alberta to offer this cutting-edge technology.

HP SitePrint delivers millimeter-level precision, significantly more accurate than traditional tape measures and chalk lines. This precision virtually eliminates layout errors, reducing costly rework and keeping your project on schedule.

Robotic site layout is ideal for commercial high-rise buildings, office towers, retail developments, industrial facilities, warehouses, and oil & gas sites. Any project requiring precise layout for walls, electrical, plumbing, HVAC, or structural elements benefits from this technology.

We accept DWG and DXF file formats from all major CAD and BIM software including AutoCAD, Revit, and Plant 3D. Our team handles file preparation and optimization to ensure seamless integration with the HP SitePrint system.

Pricing depends on project size, complexity, and location. Despite the advanced technology, robotic layout often proves more cost-effective than traditional methods due to reduced labor hours and elimination of rework. Contact us for a free quote tailored to your specific project needs.

Robotic Site Layout Projects

See our HP SitePrint robotic layout technology in action on real construction sites

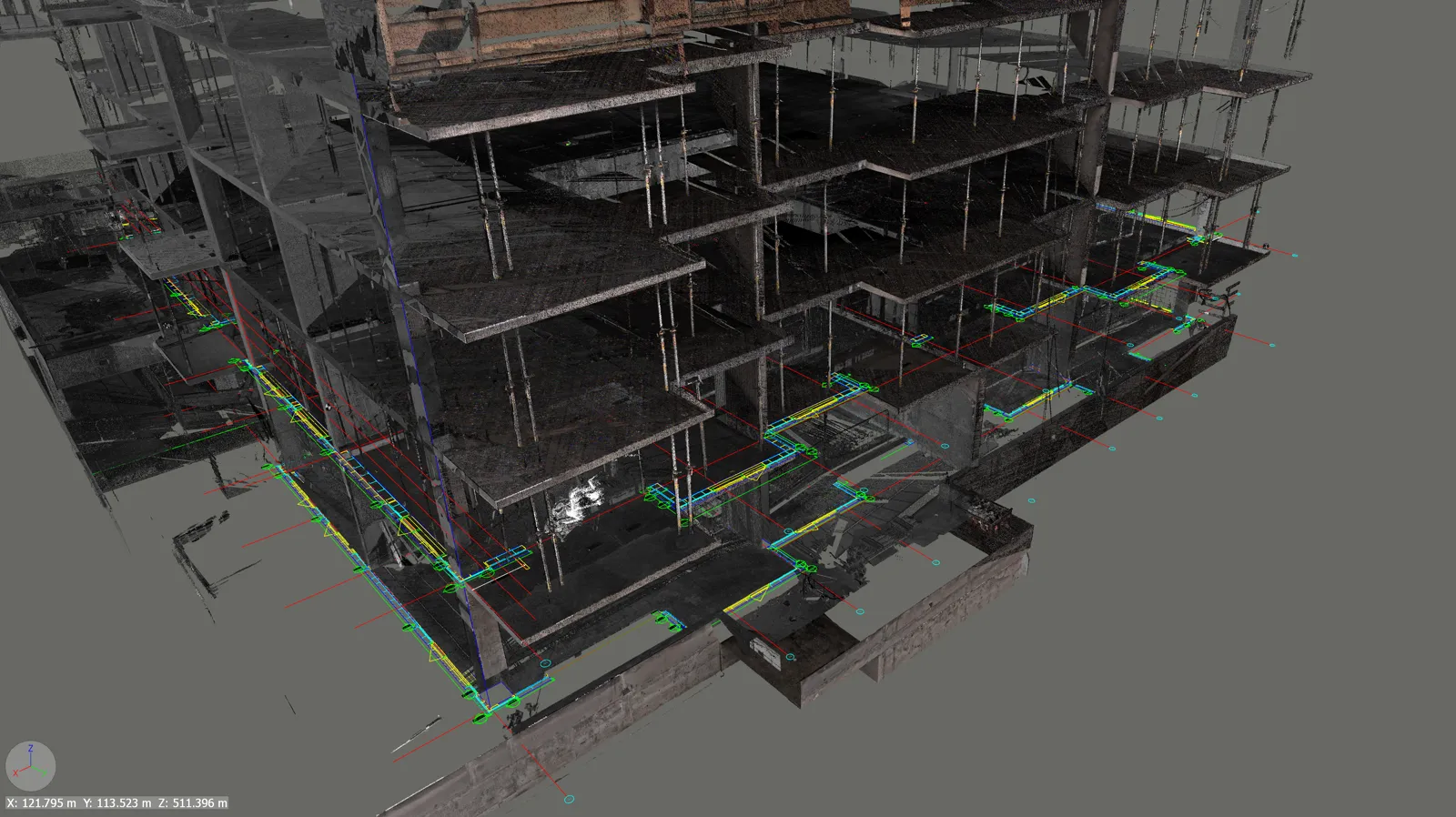

Yellowstone multi-story building 3D scan with robotic site layout integration Calgary

Yellowstone Building Project

Multi-story construction 3D scan with layout line integration

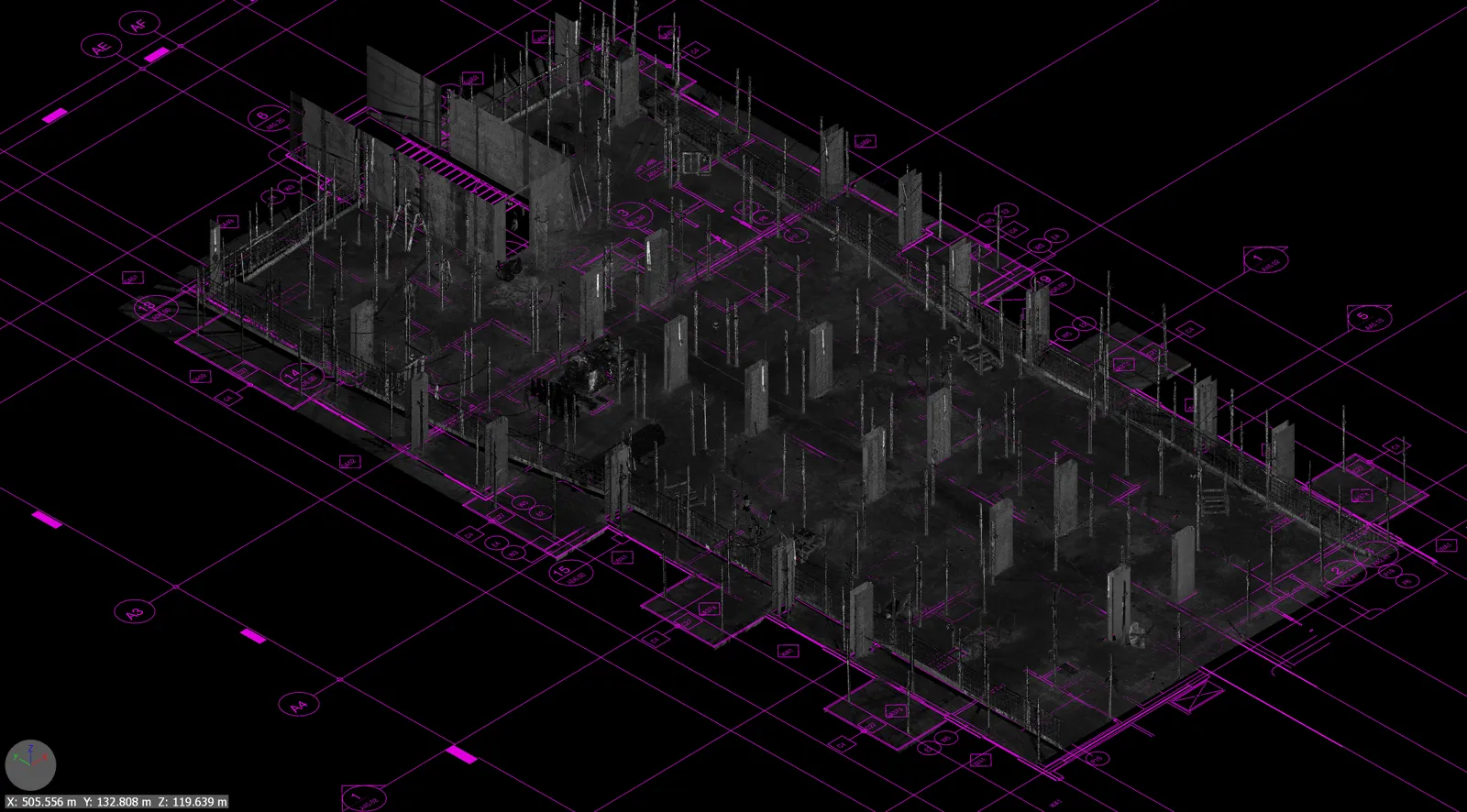

Truman construction site with HP SitePrint robotic layout grid overlay Calgary

Truman Construction Layout

HP SitePrint robotic layout grid for precise positioning

View All Projects

Get started

Ready to transform your construction project with our cutting-edge site layout technology? Let our team help you reduce costs, enhance safety, and optimize your project timeline.
